HD Fuel Pump/ Fan Relay Kit

This kit is designed for high current applications such as high power coolant fans, high flow fuel pumps and any other load switching which requires an SPDT 40 amp relay.

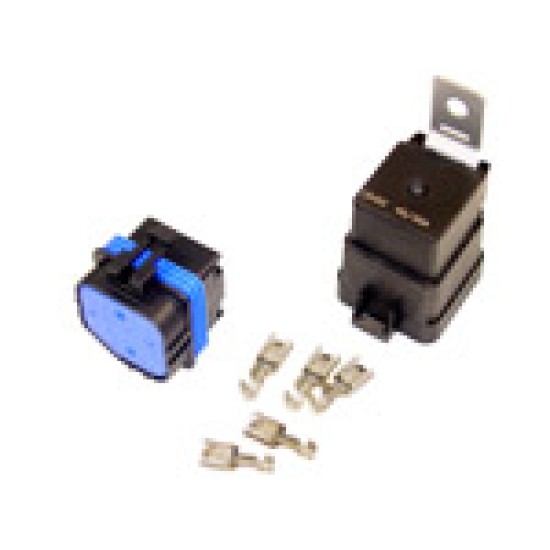

Sealed relay is packaged with sealed connector, three 12/10 gage “Pull To Seat” terminals for the relay contacts and two 18/16 gage terminals for the relay coil. Correct “Double-D” crimp tool is required for installation of terminals.

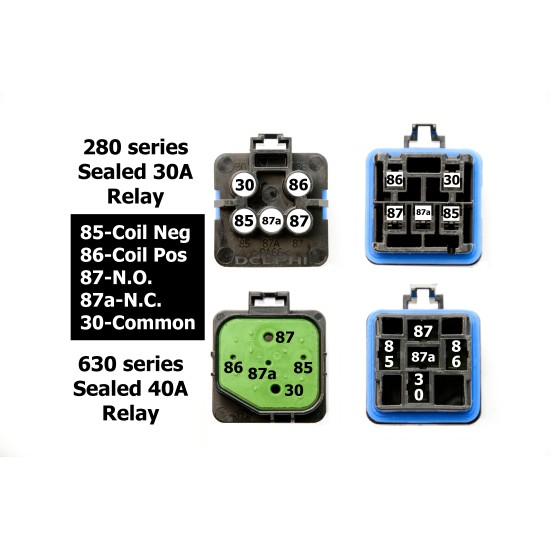

 INSTALLATION
in PDF format
